Model DG

DESCRIPTION

The Model DG is an inline valve that holds a bubble-tight, closed position until pressure reaches an exact set point. At set point, the pin buckles and the valve instantly opens to relieve pressure from a protected system.

SPECIFICATIONS

Set Pressure: 5 – 2,000 Psi
Accuracy: + / – 5%
Connections: Standard and custom available.
Seals: Available for high & low temperatures, Viton standard.
Standard Materials: Stainless-steel body with stainless-steel trim is standard, other exotic materials optional.

Download brochure for complete details on features, advantages and benefits of the Model DG valve.

NOTE: Taylor Valve reserves the right to change product designs and specifications without notice.

APPLICATIONS

The Model DG valve provides safety for a variety of pressure relief applications including but not limited to: Oil and Gas Production, Pipeline, Well Drilling, Chemical Processing, Food Processing, Waste Water Processing, Pharmaceutical Processing, Pulp and Paper Plants, and anywhere that conventional relief valves and rupture discs are used.

Model D

DESCRIPTION

The Model D is an inline body safety pressure relief valve that holds a bubble-tight, closed position until pressure reaches an exact set point. At set point, the valve instantly opens to relieve pressure from a protected system.

SPECIFICATIONS

Set Pressure: 5 – 2,000 Psi
Accuracy: + / – 5%
Connections: Custom and standard available.
Seals: Available for high & low temperatures, Viton standard.
Standard Materials: Carbon steel body with stainless-steel trim, other materials optional.

Download brochure for complete details on features, advantages and benefits of the Model D valve.

NOTE: Taylor Valve reserves the right to change product designs and specifications without notice.

APPLICATIONS

The Model D valve provides safety for a variety of pressure relief applications including but not limited to: Oil and Gas Production, Pipeline, Well Drilling, Chemical Processing, Food Processing, Waste Water Processing, Pharmaceutical Processing, Pulp and Paper Plants, and anywhere that conventional relief valves and rupture discs are used.

Model HPRV : Pressure Relief Drilling Valves

DESCRIPTION

The Model HPRV is an angle body valve that holds a bubble-tight, closed position until pressure reaches an exact set point. At an exact set point, the pin buckles and the valve opens in milliseconds for immediate pressure relief. Relieves pressure to prevent pump, hose and system damage on frac fluid systems – ideal for pulsating pressure.

SPECIFICATIONS

Set Pressure: 7,000-15,000 Psi
Accuracy: + / – 8%
Connections: Standard 1502H X 1502T connections available.
Seals: Available for high & low temperatures, HNBR standard. Fluid compatible seals.
Standard Materials: Forged AISI 4130, Forged body with stainless-steel trim. Other materials optional.

Download brochure for complete details on features, advantages and benefits of the Model HPRV.

NOTE: Taylor Valve reserves the right to change product designs and specifications without notice.

APPLICATIONS

The Model HPRV valve provides safety for a variety of pressure relief applications including but not limited to: mud, slurry, and fracing fluid relief. The valve relieves pressure to prevent pump, hose and system damage on frac fluid systems – ideal for pulsating pressure. Use instead of nitrogen assisted valves or ball & spring reset valves where you need greater accuracy and reliability. Our hydraulic fracturing and mud and slurry relief valve ranges are exceedingly popular in the Oil & Gas industry.

Model IC

DESCRIPTION

The Model IC is an angle body valve that holds a bubble-tight, closed position until pressure reaches an exact set point. At set point, the pin buckles and the valve opens in milliseconds for immediate pressure relief to prevent pump, hose and system damage on mud and slurry pump systems – ideal for pulsating pressure.

SPECIFICATIONS

Set Pressure: 1,000-10,000 Psi (For other set pressures, contact Taylor Valve.)
Accuracy: + / – 5%
Connections: Standard and custom available.
Seals: Available for high & low temperatures, HNBR standard. Drilling compatible seals.
Standard Materials: Forged AISI 4130, Forged Body with stainless-steel trim. Other materials optional.

Download brochure for complete details on features, advantages and benefits of the Model IC valve.

NOTE: Taylor Valve reserves the right to change product designs and specifications without notice.

APPLICATIONS

The Model IC valve provides safety for a variety of pressure relief applications including but not limited to: mud, slurry, and fracing fluid relief. The valve relieves pressure to prevent pump, hose and system damage on mud and slurry pump systems – ideal for pulsating pressure. Use instead of nitrogen assisted valves or ball & spring reset valves where you need greater accuracy and reliability. Our hydraulic fracturing and mud and slurry relief valve ranges are exceedingly popular in the Oil & Gas industry.

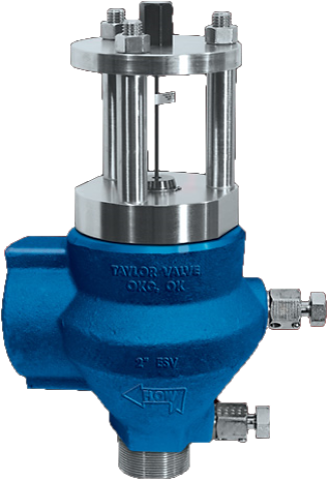

Model A-ESV

DESCRIPTION

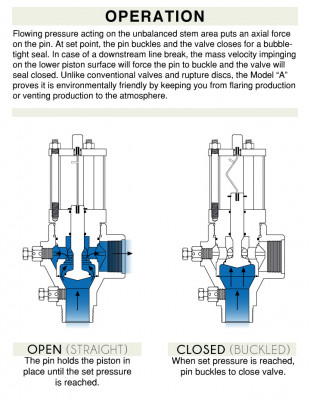

The Model A is an angle body valve that holds a bubble-tight, open position until flowing pressure acting on the unbalanced stem area puts an axial force on the pin. At set point, the pin buckles and the valve closes for a bubble-tight seal. In case of a downstream line break, the mass velocity impinging on the lower piston surface will force the pin to buckle and the valve will seal closed. Unlike conventional valves and rupture discs, the Model “A” proves it is environmentally friendly by keeping you from flaring production or venting production to the atmosphere.

SPECIFICATIONS

Set Pressure: 40 – 500 Psi (For other set pressures, contact Taylor Valve.)
Accuracy: + / – 5%
Connections: Standard 2″ NPT and custom connections available.
Seals: Available for high & low temperatures, Viton standard.
Standard Materials: Carbon steel body, stainless-steel trim is standard, other materials optional.

Download brochure for complete details on features, advantages, and benefits of the Model A Isolation valve.

NOTE: Taylor Valve reserves the right to change product designs and specifications without notice.

APPLICATIONS

The Model A Isolation valve keeps well pressure from exceeding D.O.T. transmission limits and protects the meter run from excess pressure. It is part of our line of pressure isolation valves is primarily used to prevent damage to downstream equipment including meter houses and line transfers

Model CM

DESCRIPTION

The Model CM is an angle valve that holds a bubble-tight, closed position until pressure reaches an exact set point. At set point, the valve instantly opens to relieve pressure from a protected system.

SPECIFICATIONS

APPLICATIONS

The Model C-M valve is used mainly on steam jacketed flow systems and in the pulp and paper industry. It can also be used nearly anywhere conventional relief valves and rupture discs are currently being used.

PRODUCT FEATURE

This valve has no voids where material can get packed into.  The media flow moves past a flat piston and there is an angled port provided to inject water to clear the seat of solids prior to re-seating the piston.

Model H

DESCRIPTION

 The Model H is best in Methanol and Chemical Injection Systems and is available for pressure set points up to 20,000 PSI. The product is an angle valve that holds a bubble-tight, closed position until the pressure reaches an exact point, at which time the valve will open within milliseconds creating minimal exposure of the flow to the piston. The Model H is unaffected by pulsating pressure or changing ambient temperate at the pin. This valve is best suited for high pressures with low volume applications.

SPECIFICATIONS

Set Pressure: 1,000 – 20,000 Psi
Accuracy: + / – 5%
Connections: Standard and custom available.
Seals: Available for high pressures, Kalrez or Viton seals.
Standard Materials: Body 316 SS, 316 SS trim is standard.

Download brochure for complete details on features, advantages and benefits of the Model H valve.

NOTE: Taylor Valve reserves the right to change product designs and specifications without notice.

APPLICATIONS

The Model H valve is used mainly in Methanol and Chemical Injection Systems. It is the ideal substitute for rupture discs or Belville washer type relief valves. It can also be used nearly anywhere conventional relief valves and rupture discs are currently being used especially in a high-pressure situation.

Model CM

DESCRIPTION

The Model CM is an angle valve that holds a bubble-tight, closed position until pressure reaches an exact set point. At set point, the valve instantly opens to relieve pressure from a protected system.

SPECIFICATIONS

APPLICATIONS

The Model C-M valve is used mainly on steam jacketed flow systems and in the pulp and paper industry. It can also be used nearly anywhere conventional relief valves and rupture discs are currently being used.

PRODUCT FEATURE

This valve has no voids where material can get packed into.  The media flow moves past a flat piston and there is an angled port provided to inject water to clear the seat of solids prior to re-seating the piston.

Model JA

DESCRIPTION

The Model JA ESV is an inline valve that holds a bubble-tight, open position until flowing pressure acting on the unbalanced stem area puts an axial force on the pin. At set point, the pin buckles and the valve closes for a bubble-tight seal. This model isolates pressure to prevent downstream damage to equipment and proves it is environmentally friendly by eliminating air and ground pollution common with conventional relief valves.

SPECIFICATIONS

Set Pressure: 25 – 2,000 Psi (For other set pressures, contact Taylor Valve.)
Accuracy: + / – 5%.
Connections: Flange rating 150#, 300# and 600# standard. Higher pressure available upon request.
Seals: Available for high & low temperatures, Viton standard.
Standard Materials: Carbon steel body with stainless-steel trim, other materials optional.

Download brochure for complete details on features, advantages and benefits of the Model JA valve.

NOTE: Taylor Valve reserves the right to change product designs and specifications without notice.

APPLICATIONS

 The Model J-A isolation valve closes at set pressure to prevent damage to downstream equipment from excess pressure including meter houses and line transitions.

PRODUCT FEATURE

 The fully mechanical emergency shut off valve eliminates the need to have electricity or pneumatics on site.

MODEL JA-SIL 3 CAPABLE

DESCRIPTION

The Model JA -SIL-3 Capable is an inline valve that holds a bubble-tight, open position until flowing pressure acting on the unbalanced stem area puts an axial force on the pin. At set point, the pin buckles and the valve closes for a bubble-tight seal. This model isolates pressure to prevent downstream damage to equipment and proves it is environmentally friendly by eliminating air and ground pollution common with conventional relief valves.

SPECIFICATIONS

 Set Pressure: 25 – 1,480 Psi
Accuracy: + / – 5%
Connections: Flange rating 150#, 300# and 600# standard. Higher pressure available upon request.
Seals: Available for high & low temperatures, Viton standard.
Standard Materials: Carbon steel body with stainless-steel trim, other materials optional.

Download brochure for complete details on features, advantages and benefits of the Model JA-SIL-3 Capable valve.

NOTE: Taylor Valve reserves the right to change product designs and specifications without notice.

APPLICATIONS

The Model J-A SIL 3 Capable isolation valve closes at set pressure to prevent damage to downstream equipment from excess pressure including meter houses and line transitions.

WHAT IS SIL 3 CAPABLE?

 SIL, or Safety Integrity Level, is a measurement scale of safety system performance for an element with safety instrumented function (SIF) installed in a safety instrumented system (SIS). There are four possible ratings: 1, 2, 3 and 4; the higher the rating, the more functionally safe the system is deemed to be based upon specified risk factors prescribed by IEC 61508 guidelines.

When installing three SIL capable J-A ESVs in a system, a Safety Integrity Level of 3 is achieved with a risk reduction factor of 10,000 to 1,000.

R1 Series Choke Valve

CI / CA Choke Valves

MDI / MDA Choke Valves

MDI / MDA Series Chokes are made with wear-resistant material to extend service life, with redundant O-Rings on the Bonnet Seals and Stem Seals that help prevent leakage. Fully Guided Stems reduce imbalance and vibration. Control Discs provide ANSI Class III/IV Shut off.

SPECIFICATIONS:

Connection Size: 1″, 2″, 3″
Connection Type: Threaded, Flanged, Butt Weld
Body Style: Angled
Body Material: 1018/1020 CS, 316 SS
Process Fluid: Gas, Liquid, Steam

 MDI
Body Rating: 1″ & 2″ – 5,000 PSI, 3″ – 3,000 PSI
CV Range: 1″ & 2″ – 0.7 – 23.86, 3″ – 11.2 – 84.65

MDIS
Body Rating: 1″ & 2″ – 5,000 PSI, 3″ – 3,000 PSI
MAWP: 1333 PSI for Steam
CV Range: 1″ & 2″ – 0.7 – 23.86, 3″ – 11.2 – 84.65

Additional Benefits:
Accurate Control – 90 degree rotation from Full Off to Full On.

Bolted Bonnet – Safety Bonnet is bolted into the body, it avoids the well-known risks of corrosion, cross threading, galling of threaded type connection in production environments.

Extended Mean Time Between Service – Robust design and liberal application of hardened materials, efficient flow-geometry means the valves offer maximum production potential and minimum service requirements.

Easy Maintenance – Repair parts can be installed in the field without removing the valve from the line.

Optional Features:

Choke Valves can have trims and actuators custom designed for specific requirements. Such as special noise reduction trims, reduced port and maximum orifice trims, and for very high pressure or minimum pressure loss for a declining field.

APPLICATIONS:

High pressure drop applications in gas, liquid, and vapor. Quick open/close with abrasive fluids at high pressure drops.

• Well Site Automation
• Blow Down and Dump Valve
• Water Injection Control Valve
• Remote Control for directional drilling
• CO2 Injection Control Valve
• Steam Injection
• Pump Bypass
• Steam Tracer Control
• Pump Startup
• Manual and Automated Application
• Gas Lift Injection Control
• High Temperature Protection

Please download the Product Brochure PDF for more information.

MC Inline Choke

The MC Series pressure and flow control valves feature a superior design for unequaled throttling and accuracy. Unique sealing and fluid flow dynamics permit compliance with current environmental (FTE) requirements.

SPECIFICATIONS:

Connection Size: 1″-2″ Threaded, 3″ Flanged
Connection Type: Threaded, Flanged, Butt Weld, and Victaulic End
Body Style: Inline
Body Material: 316 SS
Process Fluid: Gas, Liquid, Vapor
Max. Working Pressure: 3,600 psi
CV Range: 0.70 – 16.57

Additional Benefits:

• Accurate Control – 90-degree rotation from Full Off to Full On
• Bolted Body – Body is constructed with two bolted segments, avoiding the risk of corrosion, cross-threading, galling of threaded type valve assemblies.
• Extended Mean Time Between Service – Robust design and liberal application of hardened materials, efficient flow-geometry means the valves offer maximum production potential and minimum service requirements.
• Easy Maintenance – Choke valves are designed to provide simple straightforward disassembly with no special tooling or fixtures.

Optional Features: Choke valves can have trims and actuators custom-designed for specific requirements, such as special trims for noise reduction and sand control, several trims are available to accommodate high pressure flows or minimum pressure loss applications.

APPLICATIONS:

High-pressure drop applications in gas, liquid, and vapor. Quick open/close with abrasive fluids at high-pressure drops.

• Well Site Automation
• Water Injection Control Valve
• CO2 Injection Control Valve
• Pump Bypass
• Pump Startup
• Gas Lift Injection Control
• Blow Down and Dump Valve
• Steam Injection
• Throttling Valve
• High DP Valve
• Motor Operated Valve

This choke has several advantages including:

1. Superior trim design for unequaled throttling control and accuracy in the process environment
2. The unique flow path through the trim for superior resistance to cavitation and increased stability of trim.
3. Durable, high-quality construction for longer life and drastically reduced maintenance.
4. orifice position is displayed clearly.
5.  Control surfaces are separated from sealing surfaces.
6. Unique sealing and fluid flow dynamics permit compliance with current environmental (FTE) requirements.
7. Seal tightness ratings are superior to any competitive product model.
8. Easy to set - 1/4 turn for the full range.
9. Economically priced

Please download the Product Brochure PDF for more information.

Model C - ASME

DESCRIPTION

The Model C-ASME is the ASME certified version of our angle body Model C relief valve. The Model C-ASME is UD stamped. It holds a bubble-tight, closed position until pressure reaches an exact set point. At set point, the valve instantly opens to relieve pressure from a protected system. The valve features a wide variety of pressures ratings and settings.

SPECIFICATIONS

Set Pressure: 15 – 1,480 PSI
Accuracy: + / – 5% above 40 PSI, ±2 PSI Below 40 PSI
Connections: Flange connections available.
Seals: Available for high & low temperatures, Viton standard.
Standard Materials: ASME Section II materials.

The C-ASME now offers same inlet and outlet connections with the option of having the outlet being one size larger than the inlet.

Download brochure for complete details on features, advantages and benefits of the Model C-ASME valve.

NOTE: Taylor Valve reserves the right to change product designs and specifications without notice.

APPLICAITONS

The Model C-ASME relief valve is designed specifically to be installed on ASME Section VIII UD coded vessels. It provides safety for a variety of pressure relief applications including but not limited to: Oil and Gas Production, Pipeline, Well Drilling, Chemical Processing, Food Processing, Waste Water Processing, Pharmaceutical Processing, Pulp and Paper Plants, and anywhere that conventional relief valves and rupture discs are used.

Model CB

DESCRIPTION

The Model CB holds a bubble-tight, closed position until pressure reaches an exact set point. At set point, the valve instantly opens to relieve pressure from a protected system.

SPECIFICATIONS

Set Pressure: 10 – 2,000 Psi
Accuracy: + / – 5%
Connections: Custom and standard available.
Seals: Available for high & low temperatures, Viton standard.
Standard Materials: Complete stainless-steel body, piston, and trim. Other exotic alloy materials optional.

Download brochure for complete details on features, advantages and benefits of the Model CB valve.

NOTE: Taylor Valve reserves the right to change product designs and specifications without notice.

APPLICATIONS

The Model CB valve provides safety for a variety of pressure relief applications including but not limited to: Oil and Gas Production, Pipeline, Well Drilling, Chemical Processing, Food Processing, Waste Water Processing, Pharmaceutical Processing, Pulp and Paper Plants, and anywhere that conventional relief valves and rupture discs are used.

Model D

DESCRIPTION

The Model D is an inline body safety pressure relief valve that holds a bubble-tight, closed position until pressure reaches an exact set point. At set point, the valve instantly opens to relieve pressure from a protected system.

SPECIFICATIONS

Set Pressure: 5 – 2,000 Psi
Accuracy: + / – 5%
Connections: Custom and standard available.
Seals: Available for high & low temperatures, Viton standard.
Standard Materials: Carbon steel body with stainless-steel trim, other materials optional.

Download brochure for complete details on features, advantages and benefits of the Model D valve.

NOTE: Taylor Valve reserves the right to change product designs and specifications without notice.

APPLICATIONS

The Model D valve provides safety for a variety of pressure relief applications including but not limited to: Oil and Gas Production, Pipeline, Well Drilling, Chemical Processing, Food Processing, Waste Water Processing, Pharmaceutical Processing, Pulp and Paper Plants, and anywhere that conventional relief valves and rupture discs are used.

Model DG

DESCRIPTION

The Model DG is an inline valve that holds a bubble-tight, closed position until pressure reaches an exact set point. At set point, the pin buckles and the valve instantly opens to relieve pressure from a protected system.

SPECIFICATIONS

Set Pressure: 5 – 2,000 Psi
Accuracy: + / – 5%
Connections: Standard and custom available.
Seals: Available for high & low temperatures, Viton standard.
Standard Materials: Stainless-steel body with stainless-steel trim is standard, other exotic materials optional.

Download brochure for complete details on features, advantages and benefits of the Model DG valve.

NOTE: Taylor Valve reserves the right to change product designs and specifications without notice.

APPLICATIONS

The Model DG valve provides safety for a variety of pressure relief applications including but not limited to: Oil and Gas Production, Pipeline, Well Drilling, Chemical Processing, Food Processing, Waste Water Processing, Pharmaceutical Processing, Pulp and Paper Plants, and anywhere that conventional relief valves and rupture discs are used.

RB Series Chokes

The RB Series unique valve trim design provides accurate control by the use of precision orifices in the flow nozzle. This design minimizes wear and maximizes service life.

SPECIFICATIONS:

Connection Size: 2″, 3″, 4″, 6″
Connection Type: Flanged
Body Style: Angled
Body Material: LACS 4130

RB2 Control Choke
Cv: 6, 12, 35 (Standard)
Bean Size: 78 / 64th’s (Standard)
Stroke Length: 1.25”
Stem Diameter: 0.625”
MAWP: 10,000 PSIG

RB3 Control Choke
Cv: 35, 64 (Standard)
Bean Size: 105 / 64th’s
Stroke Length: 1.75”
Stem Diameter: 0.625”
MAWP: 6,000 PSIG

RB4 Control Choke
Cv: 164
Bean Size: 169 / 64th’s
Stroke Length: 2.45”
Stem Diameter: 0.75”
MAWP: 6,000 PSIG

RB6 Control Choke
Cv: 420
Bean Size: 270 / 64th’s
Stroke Length: 4.25”
Stem Diameter: 1.0”
MAWP: 6,000 PSIG

FEATURES & BENEFITS:

The RB Series Control Valve features several unique design characteristics that minimize wear and maximize service life. The nozzle and external sleeve trim is designed to contain turbulence and wear by managing the flow into the nozzle and centralizing it into bore causing the flow streams to impinge on each other. The valve body and outlet are protected from wear because the energy conversion as a result of the pressure drop is concentrated in the trim cavity before flow enters the outlet. This eliminates the typical wear problems in the valve outlet. The Upstream and Downstream balanced sleeve design greatly reduces the breakway and closing thrust requirements to lift the sleeve on and off seat as well as during stem travel making the control stable and precise yielding better accuracy and repeatability.

Additional Benefits:

Accurate Control – Multi-Orifice Nozzle design provides precise control over a wide range of flows.

Bolted Bonnet – A bolted bonnet prevents corrosion, cross-threading and galling of large threaded connections. The design allows for simple assembly and dissasembly.

Extended Mean Time Between Service – Robust design, application of hardened materials, and efficient flow geometry results in maximum production potential and minimum service requirements.

Easy Maintenance – All Control Choke Valves are designed with special actuator mounting systems so the choke can be maintained without disassembly of the actuator and components or instrument connections.

High Turndown Ratio – Clean flow geometry, high capacity and accurate control means the valve is suitable for both start-up and end-of field-life-process scenarios. In short, our control choke valves offer a one-valve solution for the full process life.

Optional Features:

Control Valves can have trims and actuators custom designed for specific requirements. Such as special noise reduction trims, reduced port and maximum orifice trims for very high pressure or minimum pressure loss for a declining field.

SPECIFICATIONS

Please download the Product Brochure PDF for more information.

APPLICATIONS:

• Well Site Automated and Manual Application
• Water Injection Control Valve
• CO2 Injection Control Valve
• High Pressure Drop Applications
• Gas Lift Injection Control

MCX Choke Valve

The MCX Series pressure and flow control valves feature a superior design for unequaled throttling and accuracy. Unique sealing and fluid flow dynamics permit compliance with current environmental (FTE) requirements.

SPECIFICATIONS:

Connection Size: 3″, 4″, 6″
Connection Type: Threaded, Flanged, Butt Weld
Body Style: Inline
Body Material: 1018/1020 CS, 316 SS
Process Fluid: Liquid, Gas, Vapor
Max. Working Pressure: 3,000 PSIG
CV Range: 11.2 – 279.83

Additional Benefits:

• Accurate Control – Superior design is unequaled for throttling control and accuracy. Unique sealing and fluid flow dynamics permit compliance with current environmental requirements.
• Extended Mean Time Between Service – Robust design and liberal application of hardened materials, efficient flow-geometry means the valves offer maximum production potential and minimum service requirements.
• Easy Maintenance – Choke valves are designed to provide simple straightforward disassembly with no special tooling or fixtures.

Optional Features: Choke valves can have trims and actuators custom-designed for specific requirements, such as special trims for noise reduction and sand control, several trims are available to accommodate high pressure flows or minimum pressure loss applications.

APPLICATIONS:

High-pressure drop applications in gas, liquid, and vapor. Quick open/close with abrasive fluids at high-pressure drops.

• Water Injection Control Valve
• Gas Lift Injection Control
• Throttling Valve
• High DP Valve
• Motor Operated Valve
• Enhanced Oil Recovery

Please download the Product Brochure PDF for more information.

Model HPRV

DESCRIPTION

The Model HPRV is an angle body valve that holds a bubble-tight, closed position until pressure reaches an exact set point. At an exact set point, the pin buckles and the valve opens in milliseconds for immediate pressure relief. Relieves pressure to prevent pump, hose and system damage on frac fluid systems – ideal for pulsating pressure.

SPECIFICATIONS

Set Pressure: 7,000-15,000 Psi
Accuracy: + / – 8%
Connections: Standard 1502H X 1502T connections available.
Seals: Available for high & low temperatures, HNBR standard. Fluid compatible seals.
Standard Materials: Forged AISI 4130, Forged body with stainless-steel trim. Other materials optional.

Download brochure for complete details on features, advantages and benefits of the Model HPRV.

NOTE: Taylor Valve reserves the right to change product designs and specifications without notice.

APPLICATIONS

The Model HPRV valve provides safety for a variety of pressure relief applications including but not limited to: mud, slurry, and fracing fluid relief. The valve relieves pressure to prevent pump, hose and system damage on frac fluid systems – ideal for pulsating pressure. Use instead of nitrogen assisted valves or ball & spring reset valves where you need greater accuracy and reliability. Our hydraulic fracturing and mud and slurry relief valve ranges are exceedingly popular in the Oil & Gas industry.

Model A-ESV

DESCRIPTION

The Model A is an angle body valve that holds a bubble-tight, open position until flowing pressure acting on the unbalanced stem area puts an axial force on the pin. At set point, the pin buckles and the valve closes for a bubble-tight seal. In case of a downstream line break, the mass velocity impinging on the lower piston surface will force the pin to buckle and the valve will seal closed. Unlike conventional valves and rupture discs, the Model “A” proves it is environmentally friendly by keeping you from flaring production or venting production to the atmosphere.

SPECIFICATIONS

Set Pressure: 40 – 500 Psi (For other set pressures, contact Taylor Valve.)
Accuracy: + / – 5%
Connections: Standard 2″ NPT and custom connections available.
Seals: Available for high & low temperatures, Viton standard.
Standard Materials: Carbon steel body, stainless-steel trim is standard, other materials optional.

Download brochure for complete details on features, advantages, and benefits of the Model A Isolation valve.

NOTE: Taylor Valve reserves the right to change product designs and specifications without notice.

APPLICATIONS

The Model A Isolation valve keeps well pressure from exceeding D.O.T. transmission limits and protects the meter run from excess pressure. It is part of our line of pressure isolation valves is primarily used to prevent damage to downstream equipment including meter houses and line transfers
