Belgas Regulators

BelGAS, the leader in pressure regulator design, offers the Oil, Gas and Pipeline Industry the same precision and reliability in flow control and pressure control that the control valve market has enjoyed for over 40 years. At BelGAS, we have raised the industry standard for quality, accuracy, and dependability. Even more important is that we provide this value to our customers at an economical price.

King's Energy Services Ltd. is the largest stocking Canadian distributor for BelGAS Regulators. We strive to maintain services, support, and superior deliveries for all BelGAS products through our facility.

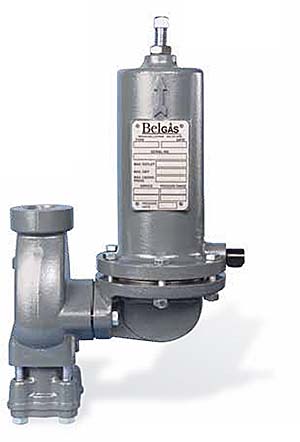

P630 Regulator

The P630 is a spring loaded, direct-operated regulator for high pressure, high flow applications. The heavy duty construction, consisting of stainless steel internal components encompassed by a powder-coated epoxy exterior finish, makes it ideally suited for the oil and gas industries. All P630 steel units meet NACE MR0175 material requirements for corrosive (sour gas) environments.

The P630R is a spring loaded relief valve and is suitable for pressure settings up to 250 psig. The BelGas 630R is available in 1” and 2” end connections. An O-ring seat provides a bubble tight shut off.

P630R units have stainless steel internal components and contain a 1/2" diameter orifice. The steel version complies with NACE MR0175 specifications.

Request More Information

P39 Regulator

The BelGas P39 regulator selection is the largest of its type in the industry. This regulator is available in three different materials, one of which will ideally suit your application AND your budget. ALL of the P39’s are offered with a minimum of five different spring ranges, with an option for a sixth range (500 PSIG), on the Brass and Nickel plated versions. Our broad selection of outlet pressure spring ranges allows more precise regulation of downstream pressure, allowing for better process control. Piping designs can be simplified by using any one (or all) of the 3 outlet ports that come standard on the regulator. The BelGas P39 is the ONLY regulator of this type, which has 3 outlet ports. To further enhance the versatility of this regulator, this product offers a choice of seat materials, allowing the design to custom fit the application requirement. Each seat is mounted in a block that can be rotated a total of 4 times to increase the service life of the regulator. Capable of regulating inlet pressures of up to 5500 PSIG, the BelGas P39 regulator becomes the first choice as a first-cut regulator.

Spare valve disks provided. Each unit comes with a 4 seat valve disk block. This block can be easily rotated 90º to provide a fresh valve disk sealing surface.
Easily changed to tamper-resistant or T-handle adjustment
Largest selection of outlet pressures
Largest number of outlet ports
Optional tapped vent on bonnet
Only the P39SS Conforms to NACE MR0175

Request More Information

P912 Pneumatic Air Pressure Regulator

The P912 pressure regulator functions as a pneumatic pressure controlling device with an adjustable set point. The P912 can be used in a variety of applications in which accurate pressure regulation is required. The internal relief feature allows the regulator to respond quickly and relieve the excess pressure.

Applicable to a wide range of gaseous fluids, including air, natural gas, and propane. This device can be used as an LP regulator. BelGas is diligently working on obtaining CSA approval for the P912 Regulators for early 2008.

Features:

Pneumatic control with adjustable set point
Versatility
Control accuracy
Compact, lightweight design
Removable vent screen

Applications

• Can be used as an LP regulator
• Applicable to a wide range of gaseous fluids, including Air, Natural Gas, Propane

Request More Information

PG105 Line Regulator

The Belgas PG105 Line Regulator is manufactured to supply the highest performance both as a Line Pressure Regulator and a Gas Appliance Regulator. This model is available in fixed or adjustable outlet pressures where small adjustments can be made to the outlet pressure on installation with the appliance.

Features

Precise regulating control of both full flow and pilot flows
Nitrile rubber diaphragm and washer are resistant to combustible gases
Die-cast aluminum housing
Regulators are supplied with a vent limiter
ANSI Certified
CSA Certified
Good for cold temperatures as low as -40

Request More Information

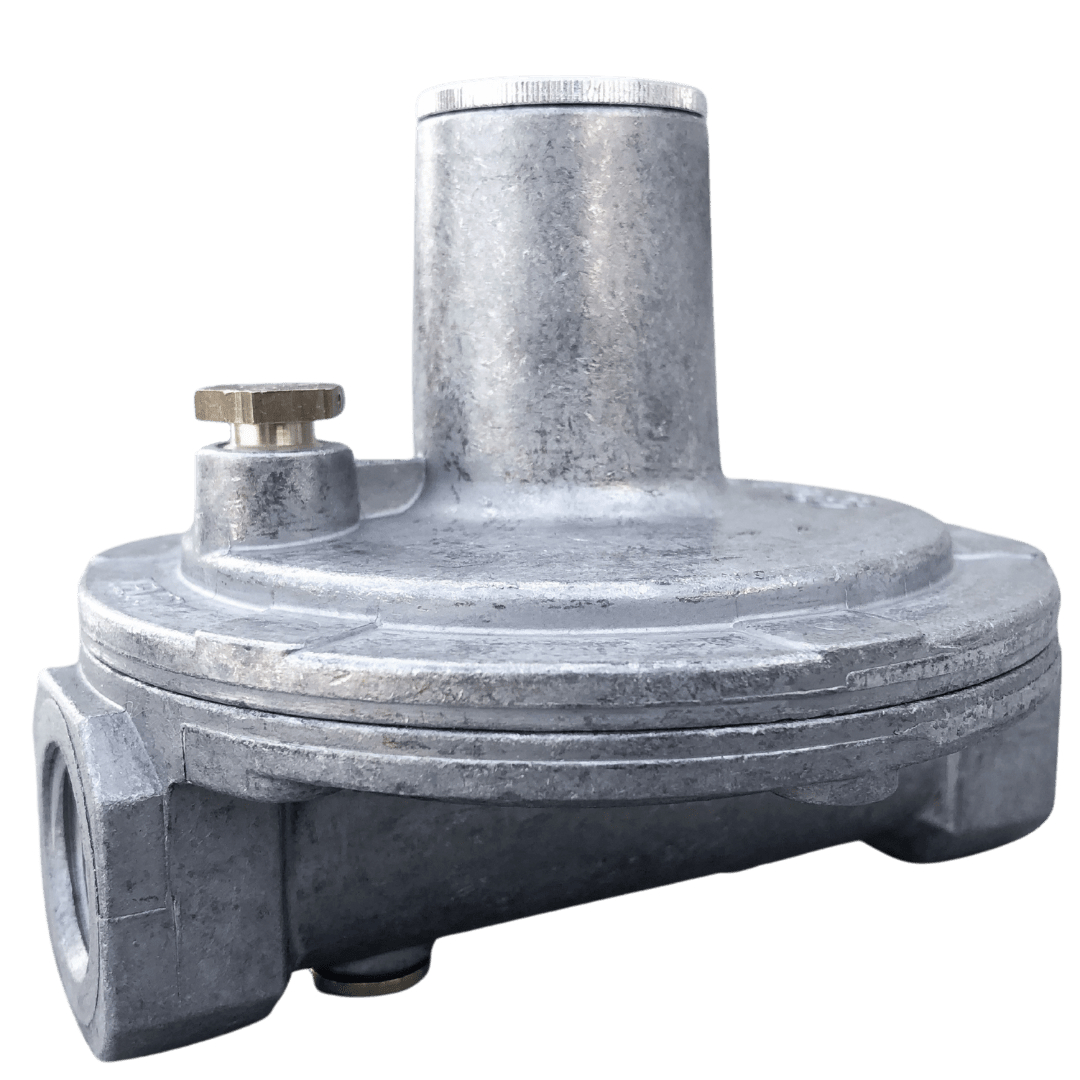

PG103 Line Appliance Regulator

PG 103 line pressure regulators are manufactured to supply the highest performance both as a Line Pressure Regulator and Gas Appliance Regulator. This model is available in fixed or adjustable outlet pressures where small adjustments can be made to the outlet pressure on installation with the appliance

Features:

Precise regulating control of both full flow and pilot flows
Nitrile rubber diaphragm and washer are resistant to combustible gases
Die-cast aluminum housing
Regulators are supplied with a vent limiter
ANSI Certified
CSA Certified

Request More Information

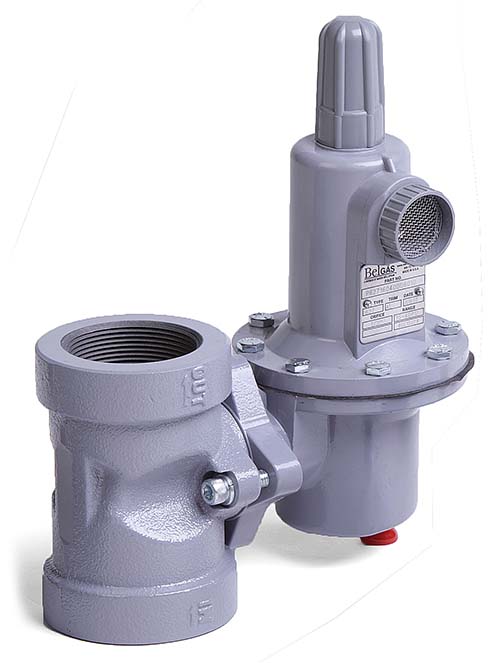

627 Low and High Pressure Regulator

The P627 is a spring loaded, direct-operated regulator for both low and high pressure applications in the oil and gas industries. The powder-coated epoxy exterior finish on these regulators provides durability. This product also offers installation versatility, which is attributed to the multi-position body and spring case configurations. The P627 is also available in an external pressure registration model (P627M), and NACE construction.

Features:
