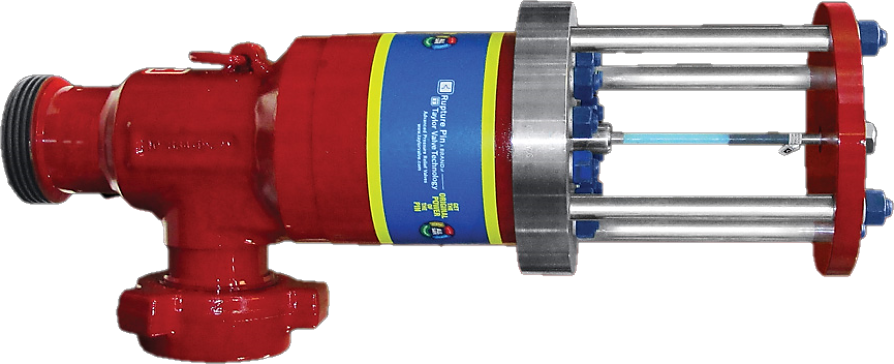

Model HPRV
DESCRIPTION

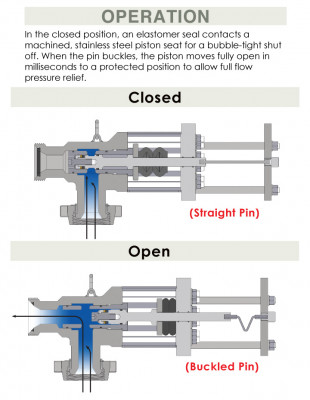

The Model HPRV is an angle body valve that holds a bubble-tight, closed position until pressure reaches an exact set point. At an exact set point, the pin buckles and the valve opens in milliseconds for immediate pressure relief. Relieves pressure to prevent pump, hose and system damage on frac fluid systems – ideal for pulsating pressure.
SPECIFICATIONS
Set Pressure: 7,000-15,000 Psi
Accuracy: + / – 8%
Connections: Standard 1502H X 1502T connections available.
Seals: Available for high & low temperatures, HNBR standard. Fluid compatible seals.
Standard Materials: Forged AISI 4130, Forged body with stainless-steel trim. Other materials optional.
Download brochure for complete details on features, advantages and benefits of the Model HPRV.
NOTE: Taylor Valve reserves the right to change product designs and specifications without notice.
APPLICATIONS
The Model HPRV valve provides safety for a variety of pressure relief applications including but not limited to: mud, slurry, and fracing fluid relief. The valve relieves pressure to prevent pump, hose and system damage on frac fluid systems – ideal for pulsating pressure. Use instead of nitrogen assisted valves or ball & spring reset valves where you need greater accuracy and reliability. Our hydraulic fracturing and mud and slurry relief valve ranges are exceedingly popular in the Oil & Gas industry.

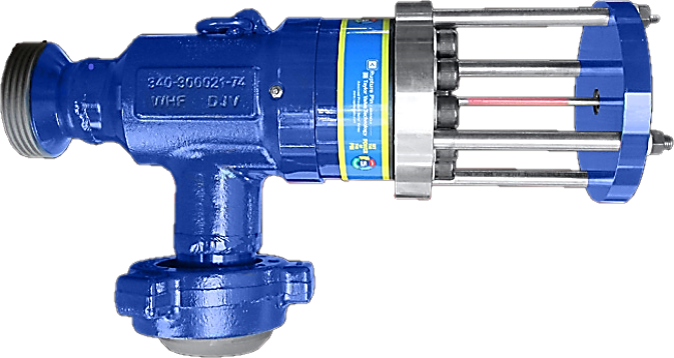

Model IC
DESCRIPTION

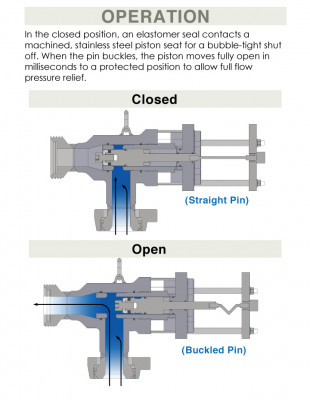

The Model IC is an angle body valve that holds a bubble-tight, closed position until pressure reaches an exact set point. At set point, the pin buckles and the valve opens in milliseconds for immediate pressure relief to prevent pump, hose and system damage on mud and slurry pump systems – ideal for pulsating pressure.
SPECIFICATIONS
Set Pressure: 1,000-10,000 Psi (For other set pressures, contact Taylor Valve.)
Accuracy: + / – 5%
Connections: Standard and custom available.
Seals: Available for high & low temperatures, HNBR standard. Drilling compatible seals.
Standard Materials: Forged AISI 4130, Forged Body with stainless-steel trim. Other materials optional.
Download brochure for complete details on features, advantages and benefits of the Model IC valve.
NOTE: Taylor Valve reserves the right to change product designs and specifications without notice.
APPLICATIONS
The Model IC valve provides safety for a variety of pressure relief applications including but not limited to: mud, slurry, and fracing fluid relief. The valve relieves pressure to prevent pump, hose and system damage on mud and slurry pump systems – ideal for pulsating pressure. Use instead of nitrogen assisted valves or ball & spring reset valves where you need greater accuracy and reliability. Our hydraulic fracturing and mud and slurry relief valve ranges are exceedingly popular in the Oil & Gas industry.
